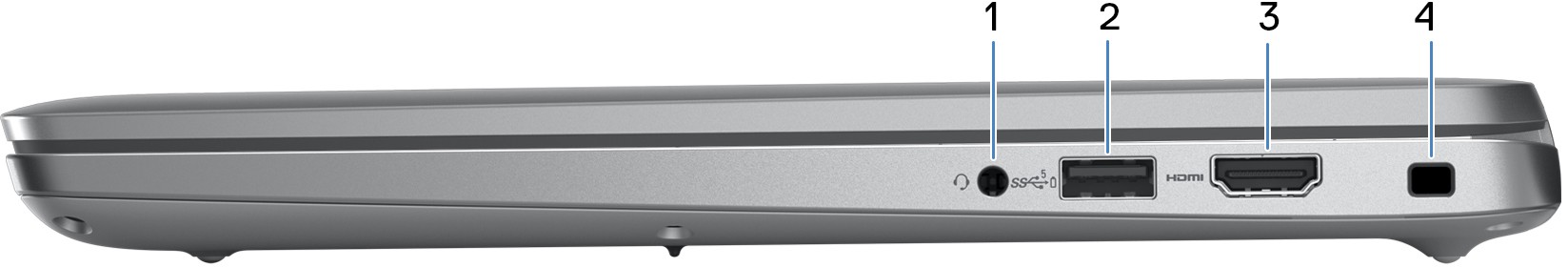

Right

Views of Latitude 5440

1 - Universal audio jack

Connect headphones or a headset (headphone and microphone combo).

2 - USB 3.2 Gen 1 port with PowerShare

Connect devices such as external storage devices and printers.

Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off.

NOTE: If your computer is turned off or in hibernate state, you must connect the power adapter to charge your devices using the PowerShare port. You must enable this feature in the BIOS setup program.

NOTE: Certain USB devices may not charge when the computer is turned off or in sleep state. In such cases, turn on the computer to charge the device.

3 - HDMI port

Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.

4 -Security-cable slot

Connect a security cable to prevent unauthorized movement of your computer.

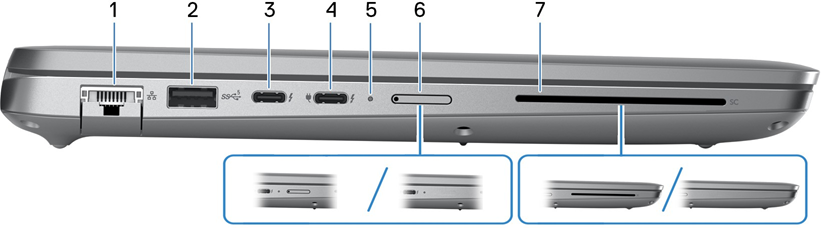

Left

1 - Network port

Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access, with a transfer rate of 10/100/1000 Mbps.

2 - USB 3.2 Gen 1 port

Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.

Thunderbolt 4.0 with DisplayPort Alt Mode/USB Type-C/USB4/Power Delivery

Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4.

Top

1 - Touchpad

Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.

NFC/Contactless smart card reader (optional)

2 - Provides contactless access of cards in corporate networks.

Power button with optional fingerprint reader

3 - Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.

When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer.

If the power button has a fingerprint reader, place your finger on the power button steadily to log in.

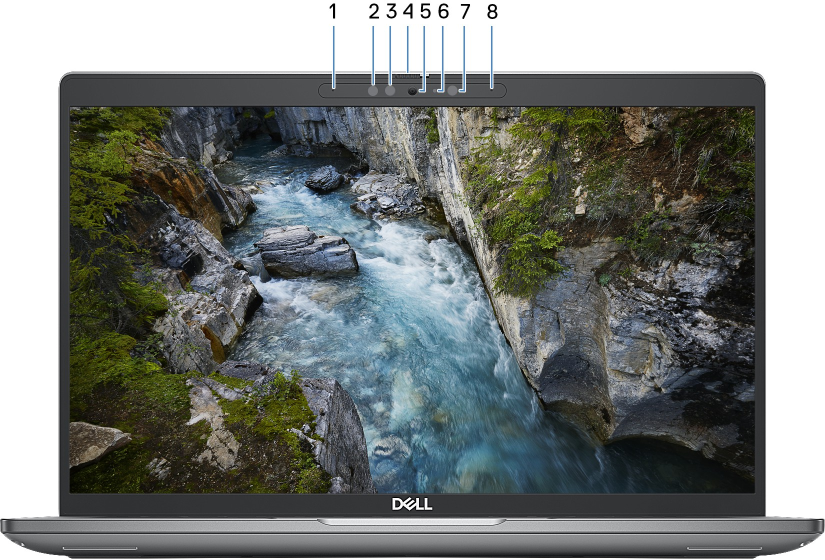

Display

Left microphone

Provides digital sound input for audio recording and voice calls.

Infrared emitter (optional)

Emits infrared light, which enables the infrared camera to sense and track motion.

Infrared camera (optional)

Enhances security when paired with Windows Hello face authentication.

Camera shutter

Slide the camera shutter to turn the camera on or off.

Camera

Enables you to video chat, capture photos, and record videos.

Camera-status light

Turns on when the camera is in use.

Ambient-light sensor

The sensor detects the ambient light and automatically adjusts the display brightness.

Right microphone

Provides digital sound input for audio recording and voice calls.

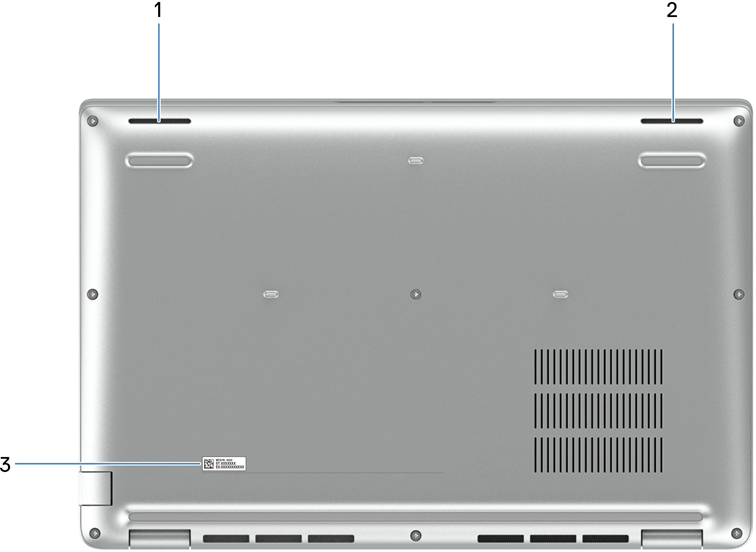

Bottom

Left speaker

Provides audio output.

Right speaker

Provides audio output.

Service Tag label

The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
